Tricotex 30/140

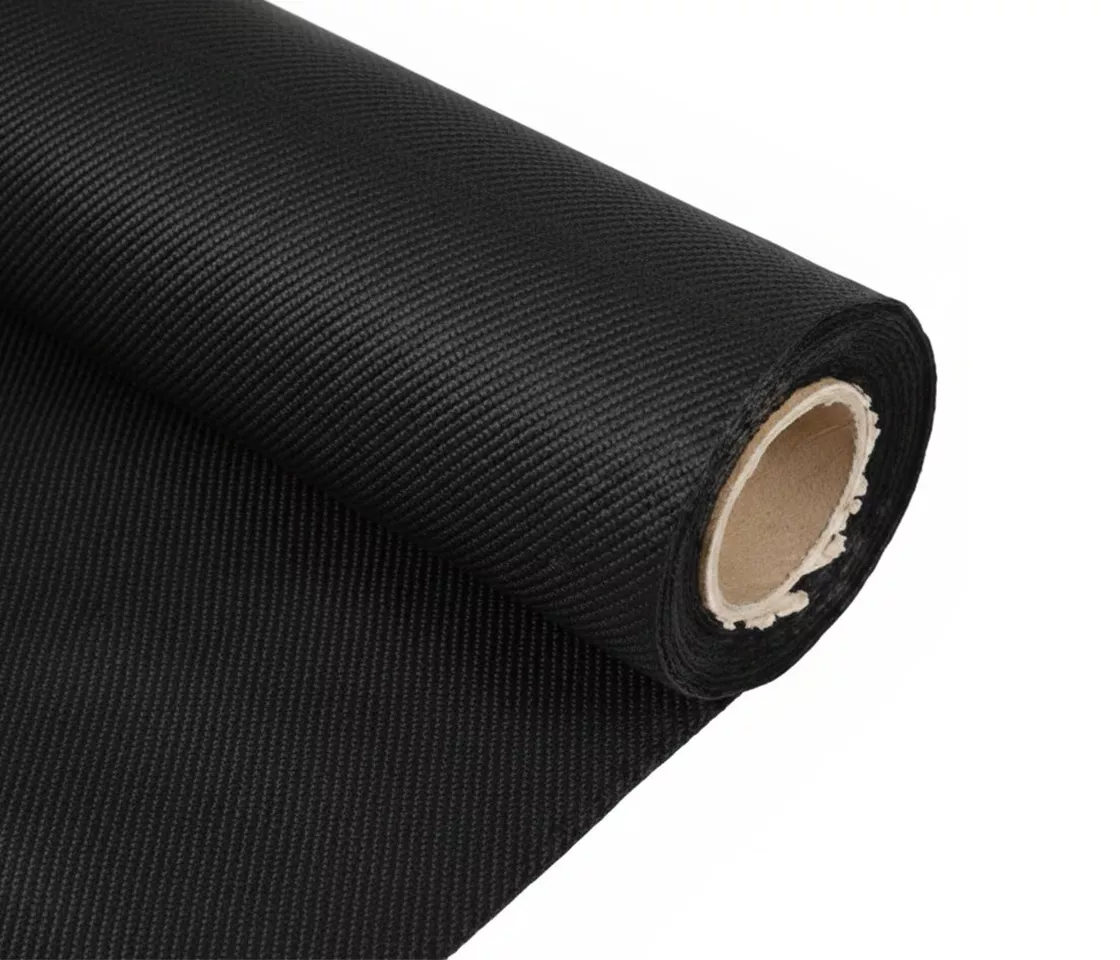

TRICOTEX geotextile made of PP tapes

The TRICOTEX geotextile made of PP tapes is a high-quality solution for demanding civil engineering and construction applications. The robust material offers high stability, good load distribution and durable resistance to mechanical stress. Its weather-resistant properties support long-term outdoor use. Thanks to its functional structure, it is especially suitable for applications where separation, protection and stabilization must be ensured over time.

Application
Ideal for separation, filtration, protection layers and soil stabilization in civil engineering and construction.

Brand

TRICOTEX

Material

PP - BAENDCHEN

Thickness

EN 9863-1 (bei 2 kN/m2) = 0.7 mm

Material weight

EN 9864 = 140 g/m2 g/m²

Tensile strength (longitudinal)

EN 10319 = 30 kN/m

Tensile strength (transverse:)

EN 10319 = 30 kN/m

Elongation (longitudinal)

EN 10319 = 16 %

Elongation (transverse)

EN 10319 = 14 %

Punch penetration force

EN ISO 12236 = 3.3 kN

Breakdown resistance

EN ISO 13433 = 12 mm

Flow rate perpendicular to the plane

EN ISO 11058 = 7 l/m2/s

Characteristic opening width

EN ISO 12956 = 0.23 mm

Weather resistance

EN 12224 (nach 50MJ) = 90 %
